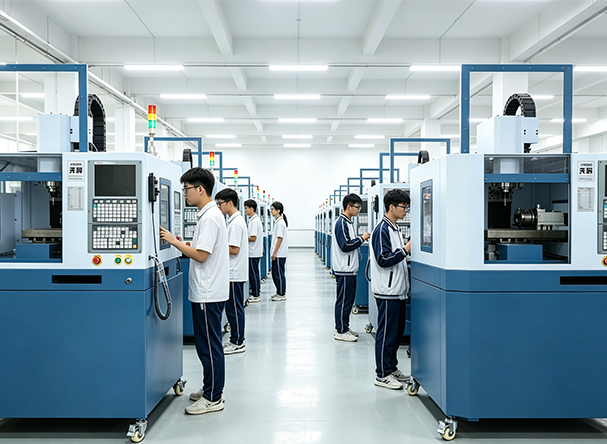

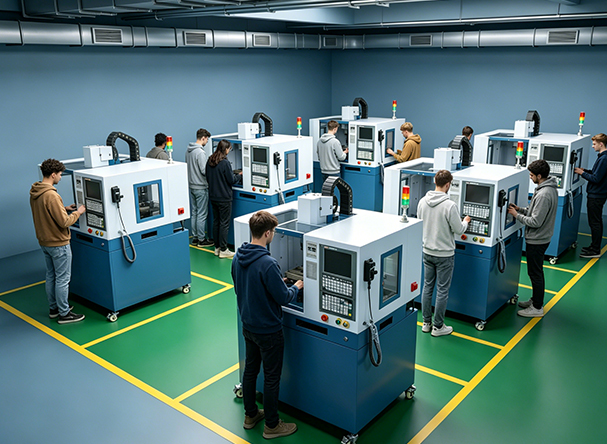

Stepping into the CNC training center of today’s vocational colleges, you might be surprised to find that the center stage is no longer occupied by those industrial-scale behemoths weighing several tons. Instead, what you see are compact, fully functional small CNC milling machines. This quiet transformation of teaching equipment is profoundly reshaping the way vocational colleges and schools cultivate CNC technology talents, as well as the efficiency of that cultivation.

For a long time, most secondary and higher vocational colleges in China have relied on industrial-grade CNC machine tools for milling training. Although these machines offer strong machining capabilities, they expose a series of problems in teaching scenarios: high consumable costs, exorbitant training expenses, significant operational risks, and severely limited independent operation time for students. A single large machine often has to be shared by more than a dozen students, drastically reducing each student’s hands-on practice time and making it difficult to guarantee teaching quality.

Against this backdrop, small CNC milling machines have emerged as the ideal choice and quickly become the preferred teaching equipment for CNC programs in vocational institutions. They are not simply scaled-down versions of industrial machines, but rather training tools specifically designed for educational settings.

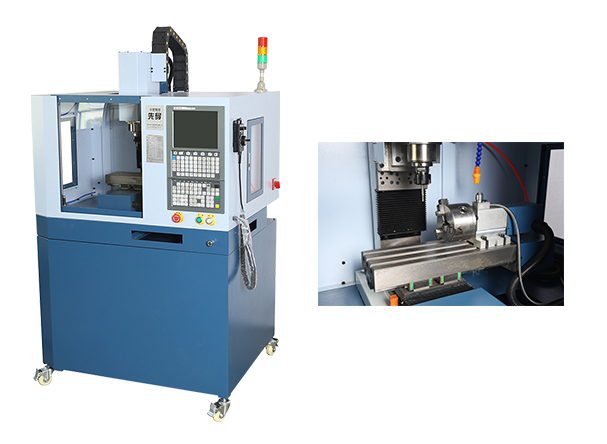

Xiandao Digital Desktop 4‑Axis CNC Milling Machine C220‑4

Technical Parameters:

Rapid traverse rate: 5000 mm/min

XYZ axis travel: 220 / 120 / 200 mm

A‑axis rotation: 360° with harmonic reduction drive

Worktable size: 400 × 140 mm

Worktable T‑slot size / number / pitch: 12 / 3 / 41

Indexing head max. rotational speed: 50 RPM

Indexing head max. manual clamping outer diameter: 60 mm (pneumatic clamping with custom dimensions available)

Spindle speed: 6000 rpm

Automatic door: up‑and‑down automatic opening/closing

XYZ axis guideways: precision linear guide rails

Power supply: AC220V / 50Hz

Net weight: 238 kg

Overall dimensions: 1110 × 930 × 1027 mm

The Xiandao Digital small CNC milling machine can be summed up as “small in size, yet complete in all functions.” It features a fully enclosed structure with transparent acrylic panels, is equipped with an industrial‑grade CNC system, and executes standard G‑code programming. It is fully compatible with mainstream G‑codes from FANUC, Mitsubishi, and others, as well as various CAD/CAM software such as MasterCAM, UG, and CAXA.

In terms of machining capability, it can process a wide range of materials, including steel, iron, copper, aluminum alloys, PVC plastics, acrylic, and more. As for precision, its repeat positioning accuracy can reach 0.01 mm. In short, apart from its size and power, its functionality is essentially no different from that of industrial‑grade machines.

It not only shines in vocational college training classrooms, but is also widely used in university innovation labs, maker spaces, research institutions for product development, and small‑factory precision machining. In a certain sense, the small CNC milling machine has transcended its role as mere “teaching equipment” and has become an important bridge connecting vocational education with intelligent manufacturing, and linking the classroom to industry.
