Amidst the global wave of intelligent manufacturing, small CNC milling machines are emerging as crucial tools for educational training, small parts R&D, and customized equipment production, thanks to their advantages of high precision, high flexibility, and low entry barriers.

With a small footprint that allows placement on a workbench or in a compact workshop, the small CNC milling machine is an excellent choice for entry-level machining, education, prototyping, and small-scale production.

As a "desktop factory" in the digital manufacturing era, the small CNC milling machine significantly lowers the barrier to precision machining. Whether for learning, creation, or small business startups, it is a powerful tool. The key is to find the optimal balance between rigidity, precision, functionality, and price based on one's core needs and budget.

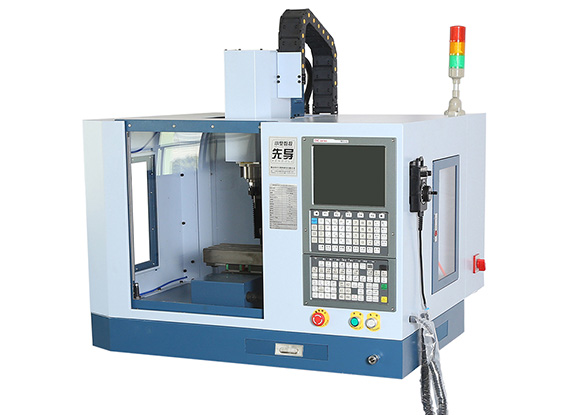

C19B Small CNC Milling Machine Technical Parameters:

X/Y/Z Axis Travel: 300 / 130 / 200 mm

Table Size: 460 × 110 mm

Max. Drilling Diameter: 13 mm

Max. Milling Diameter: 30 mm

T-slot Size: 12 mm - 3 slots

Rapid Traverse Speed (X/Y/Z): 6000 mm/min

Spindle Speed: 300 - 3000 rpm

Positioning Accuracy: ±0.02 mm

Repeat Positioning Accuracy: ±0.01 mm

Net Weight / Gross Weight: 160 / 190 kg

Overall Dimensions: 1110 × 930 × 1027 mm

Packing Dimensions: 1160 × 1000 × 1090 mm

Product Features:

Operates on 220V power, features a small footprint and low energy consumption. Utilizes a combination of transparent acrylic and sheet metal for an enclosed design, enhancing observational safety while ensuring structural robustness.

Enhanced functionality with 3-axis, equipped with an industrial-grade CNC system compatible with internationally programs. Includes and power-off memory functions.

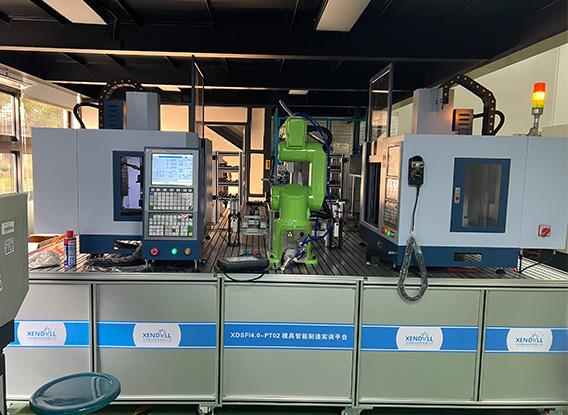

Comes standard with an automatic door. Users can optionally equip automatic workpiece clamping fixtures (customer to provide workpiece data), enabling integration with robotic arms and other machines to form small-scale automated production lines.

Compared to traditional manual milling machines, it excels in precision, consistency, complex machining capability, and automation, transforming the operator's role from "machine operator" to "programmer and manager."

Compared to large industrial CNC milling machines, it excels in cost, size, flexibility, and low barriers to entry, delivering core CNC machining capabilities with limited investment.

In summary, the advantage of a small CNC milling machine lies not in "heavy cutting" and "large-scale production," but in its "precision," "flexibility," "intelligence," and "accessibility." It is a powerful engine for makers, engineers, designers, educators, and startups to realize their ideas, validate designs, and engage in agile manufacturing.
