Small CNC lathes are characterized by their ease of operation and low cost, making them widely used in fields such as mechanical processing workshops, mold manufacturing, scientific research institutions, and personal studios.

Selecting a suitable small CNC lathe requires comprehensive consideration of multiple factors, including processing requirements, budget, and usage environment.

Choose the appropriate small CNC lathe based on different needs and clarify your requirements.

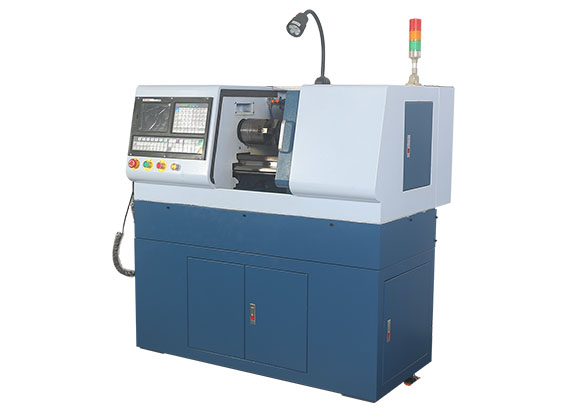

The Xiandao C59 small CNC lathe comes standard with an industrial-grade CNC system and ball screws. It features a compact size, high precision, stable performance, and high cost-effectiveness. With servo positioning control, it ensures fast and accurate positioning. The 4-station automatic turret enables the processing of complex workpieces, making it an ideal choice for small part machining. It can be configured with a front-mounted or rear-mounted pneumatic chuck and an automatic feeding device.

C59 Small CNC Lathe Technical Parameters:

X-Axis Travel: 90mm

Z-Axis Travel: 295mm

Spindle Through-Hole: 26mm

Spindle Motor Power: 1.1KW

Spindle Speed: 3500r/min

Rapid Traverse Speed: Z-Axis 6000mm/min, X-Axis 6000mm/min

Tailstock Travel: 50mm

Tool Changing Function: 4-Station Automatic Turret

Input Voltage: AC220V/50Hz

Net Weight / Gross Weight: 280kg / 305kg (with base)

Dimensions: 1239×757×1244mm (with base)

The bed guide rails of this model are super audio frequency quenched and precision ground, ensuring high hardness and rigidity. The headstock, guide rails, saddle, and carriage are robustly designed.

The saddle undergoes specialized processing, ensuring smooth movement, reducing wear on the bed guide rails, preventing crawling, and delivering high precision and long service life. The ball screws adopt an integrated internal circulation design, supported and preloaded by paired angular contact ball bearings. The guide rails and screws feature centralized lubrication, ensuring flexible movement, reduced thermal deformation, and stable accuracy.

It can also be configured for automation upgrades in line with Industry 4.0 standards. Multiple machines can be centrally managed and monitored, with various communication methods for data exchange. The host computer program interface can be independently developed by customers, making it simple and convenient. It possesses FMS compatibility and is the top choice for institutions researching flexible manufacturing. Other mainstream CNC systems, such as Guangshu and KND, can be configured according to user needs.

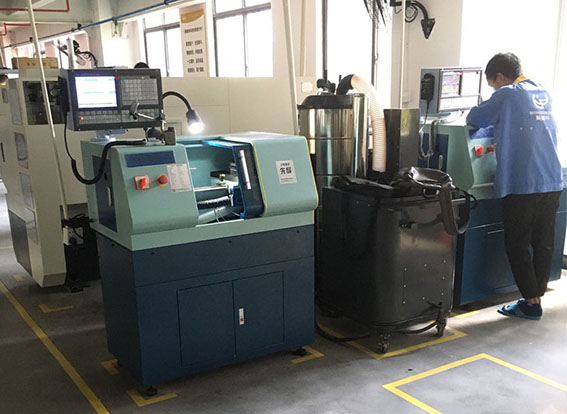

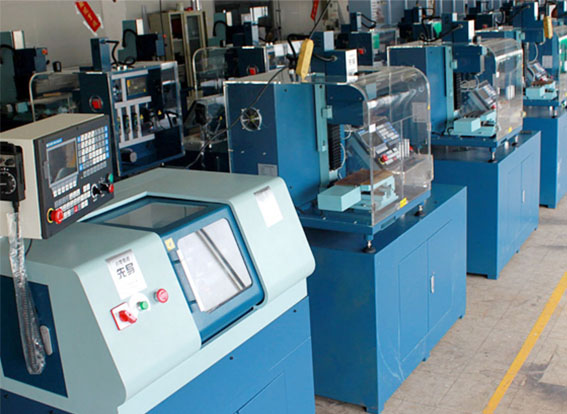

The core objectives for selecting a small CNC lathe for teaching are: safety, ease of learning, stability, high cost-effectiveness, and alignment with industrial practices. It is suitable for vocational schools, technical schools, university training centers, and maker education scenarios.
