The rapid iteration of the intelligent manufacturing industry has raised higher standards for the practical operation capabilities, fault-handling skills, and comprehensive competencies of vocational talents in the CNC field. As a core bridge connecting vocational education with industrial practice, the engineering training center serves as a key platform for cultivating high-quality technical and skilled personnel.

Specialized teaching equipment such as CNC milling machine maintenance workbenches and educational CNC milling machines serve as the core carriers of practical training. They completely break down the barriers between theoretical teaching and industrial hands-on operation, becoming the essential support for improving the quality of CNC education and consolidating students' vocational skills, thereby helping vocational education achieve its talent development goals of "learning through practice and empowering through training."

In the vocational CNC teaching system, traditional teaching models generally suffer from the drawback of emphasizing theory over practice. Students relying solely on textbook knowledge often struggle to understand the mechanical structure, electrical principles, and control system logic of CNC milling machines. When faced with practical scenarios such as equipment faults, debugging, and optimization, they are often at a loss. To address this teaching challenge, the engineering training center, equipped with various types of specialized teaching equipment, has established a systematic and hierarchical practical training system. Among these, the educational CNC milling machine focuses on foundational hands-on teaching, closely replicating the operating principles and processes of industrial-scale CNC milling machines.

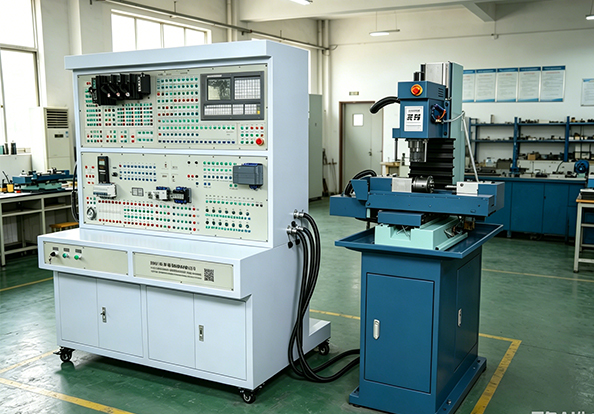

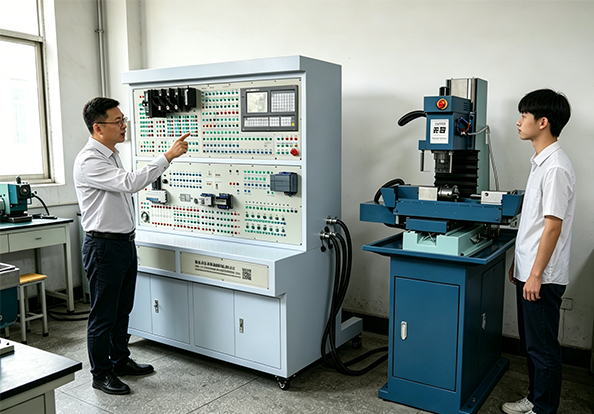

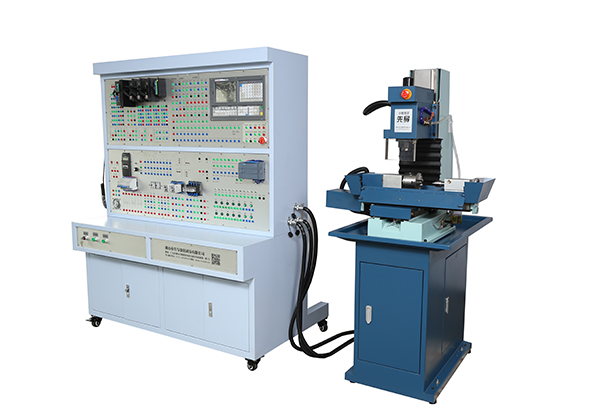

XD5002 CNC Milling Machine Maintenance Workbench

The XD5002 CNC Milling Machine Maintenance Workbench mainly consists of a CNC system, spindle speed control unit, X/Y/Z motion axes unit, I/O unit, and a CNC milling machine.

The XD5002 CNC Milling Machine Maintenance Workbench can perform machining of various curved surfaces, curves, planes, grooves, holes, etc. It is easy to operate, convenient to maintain, and widely applicable. It can be used for machining parts or mold cavities made of materials such as steel, iron, copper, aluminum, acrylic, plastic, wax patterns, etc. It features a small footprint, high working speed, and simple operation.

C31 CNC Milling Machine

The C31 CNC Milling Machine integrates two-phase hybrid stepping motors, a high-speed constant-torque spindle, ball screws, home limit switches, an electronic handwheel, and a cooling water pump. The machine allows students to learn the complete process of assembling, disassembling, and debugging a machine tool.

Technical Parameters:

Electrical cabinet workbench dimensions: 1500×1000×1900 mm

AC servo unit: 750W servo motor and driver, with corresponding software

Inverter unit: MM440 inverter (2UC17-5AA1), OBPOO-OAA1

Stepper drive and motor: 6N·m motor and 4N·m motor with drive modules

Three-phase asynchronous motor: 120W / 380V / 1200 rpm

Brushless DC motor power: 1.1 kW

GSK 980MDC industrial-grade CNC system

System resolution: 0.001 mm

Power supply unit: operates on 220V

Repeat positioning accuracy: 0.02 mm

X/Y/Z/A axis travel: 300 / 175 / 270 / 360 degrees

Spindle speed: 100–3500 rpm

Worktable dimensions approx.: 450×160 mm

Max. drilling/milling diameter: 13 / 50 mm

Spindle taper: MT3

Output power: 1.5 kW

Overall dimensions approx.: 900×950×1750 mm

The equipment retains core functions such as CNC programming, workpiece machining, and parameter debugging, while being optimized for teaching scenarios with reduced operational difficulty and enhanced safety. It is suitable for foundational courses in majors such as CNC technology, mechatronics, and mechanical manufacturing. Through this equipment, students can master basic operations such as milling machine operation, programming, and precision calibration, thereby building a solid professional foundation for CNC machining.
